Product MedtecLIVE 2024

Titanium alloys

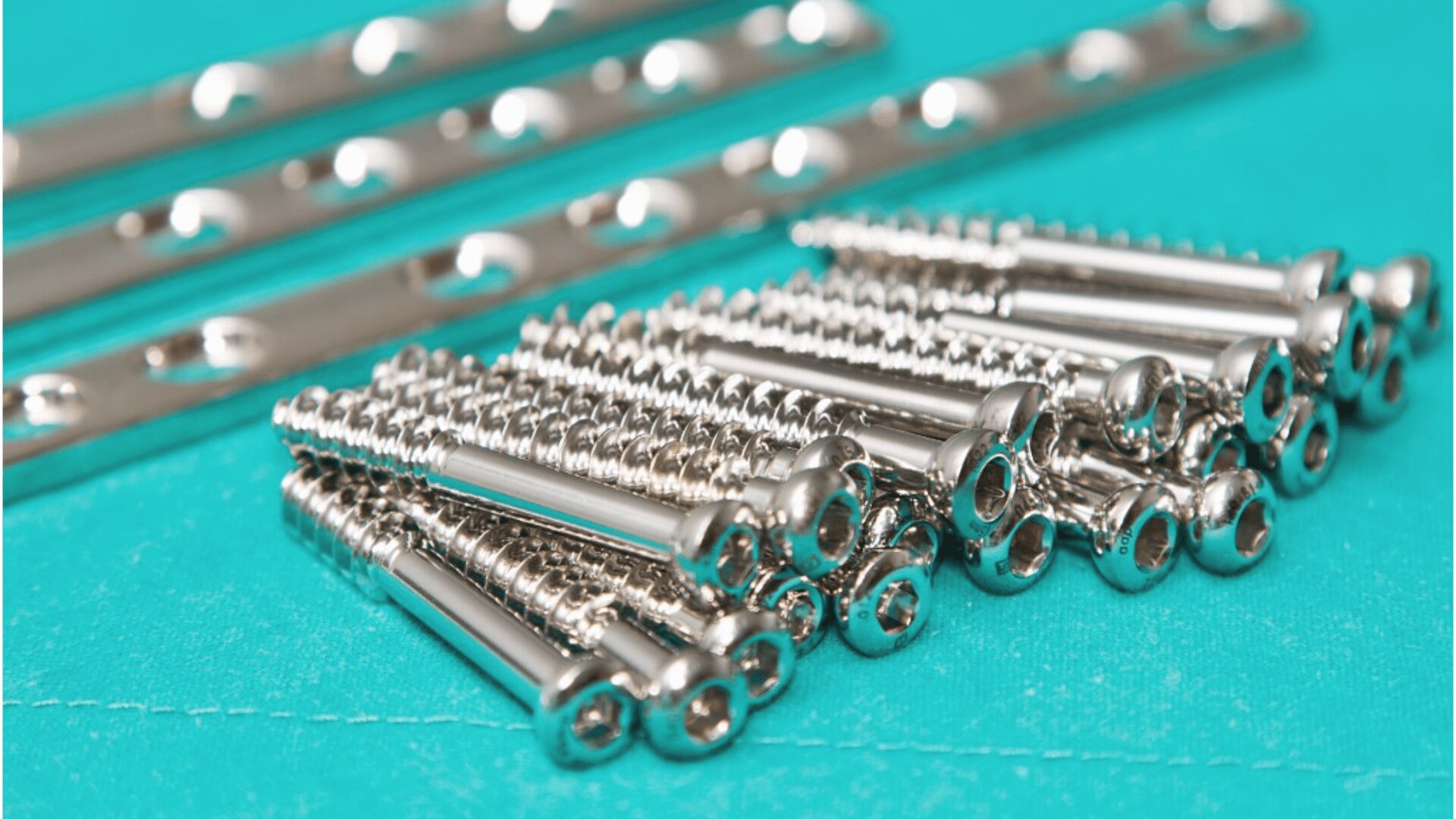

Semi-finished titanium products, e.g. for implant screws, nails, other medical fixing systems or replacement joints. Diameter range currently ≥ 3.00mm - < 6.35mm. Diameter tolerances as tight as DIN 10278 h6 are possible. In lengths of 3000mm with tight tolerances. Surface finish: centreless ground

  • DN Meditech GmbH - Traumatology Ti6Al4V-ELI
    DN Meditech GmbH - Traumatology Ti6Al4V-ELI
  • DN Meditech - Spinal surgery - Ti6Al4V-ELI
    DN Meditech - Spinal surgery - Ti6Al4V-ELI

TI6AL4V-ELI

Characteristics and scope of application

  • Supplied with Extra Low Interstitial solved elements inside microstructure especially used for medical and dental application, secure biocompatible* and long-term implantable alloy
  • High-tech alloy with enormous resistance against impact strength cracks and high compression tension fatigue limits
  • MRI compatible (non magnetic behaviour)
  • EU-Melt source for highest quality standards and secure supply chain

Standard designations

  • DN Meditech designation 3.7165/70 Ti6Al4V-ELI
  • Alloy number / UNS 3.7165-ELI / R56401
  • Specifications ASTM F136, ASTM F1472, ISO 5832-3
  • Typical chemical composition N 0.050% C 0.08% H <0.012% Al 5.50 – 6.50% V 3.50 – 4.50%
