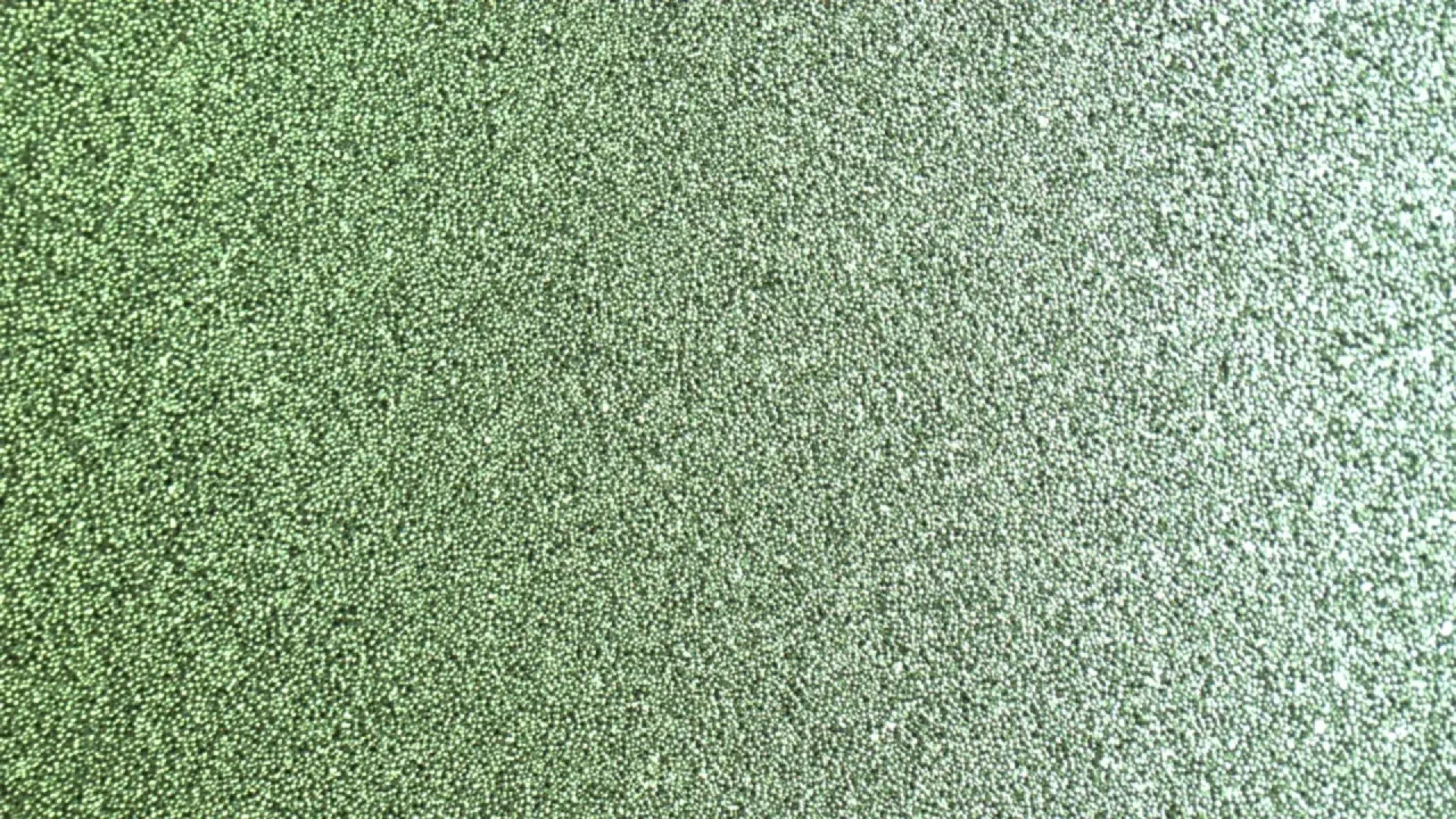

Powder for additive manufacturing

Ti-6Al-4V ELI titanium alloy powder for the manufacture of orthopaedic implants, for dental implants and for medical instruments from Signer Titanium AG.

Titanium alloy powder Ti-6Al-4V (titanium with 6 % aluminum and 4 % vanadium) is characterized by excellent mechanical properties, low specific weight and good corrosion resistance. Grade 23 (known as Ti-6Al-4V ELI) has lower limits for interstitial elements and is considered the higher purity version. Ti-6Al-4V ELI has increased ductility and fracture toughness with slightly lower strength than the usual Ti-6Al-4V, which is due to the lower proportion of interstitial elements.

One manufacturing process for Ti-6Al-4V powder is plasma sputtering, which results in excellent sphericity and a low proportion of residual elements such as oxygen.

For additive manufacturing, knowledge of particle size is important and flowability can also play a role. Particle size is usually expressed in micrometers or mesh: -63/+20 µm (-230/+635 mesh), i.e. particles larger than 20 µm and smaller than 63 µm. The largest particles are determined by sieving, the smallest by sifting (light scattering).

Signer Titanium offers a wide range of different powders for additive manufacturing. Powder of the alloy Ti-6Al-4V ELI is available from stock. We will be happy to advise you.
