Product MedtecLIVE 2024

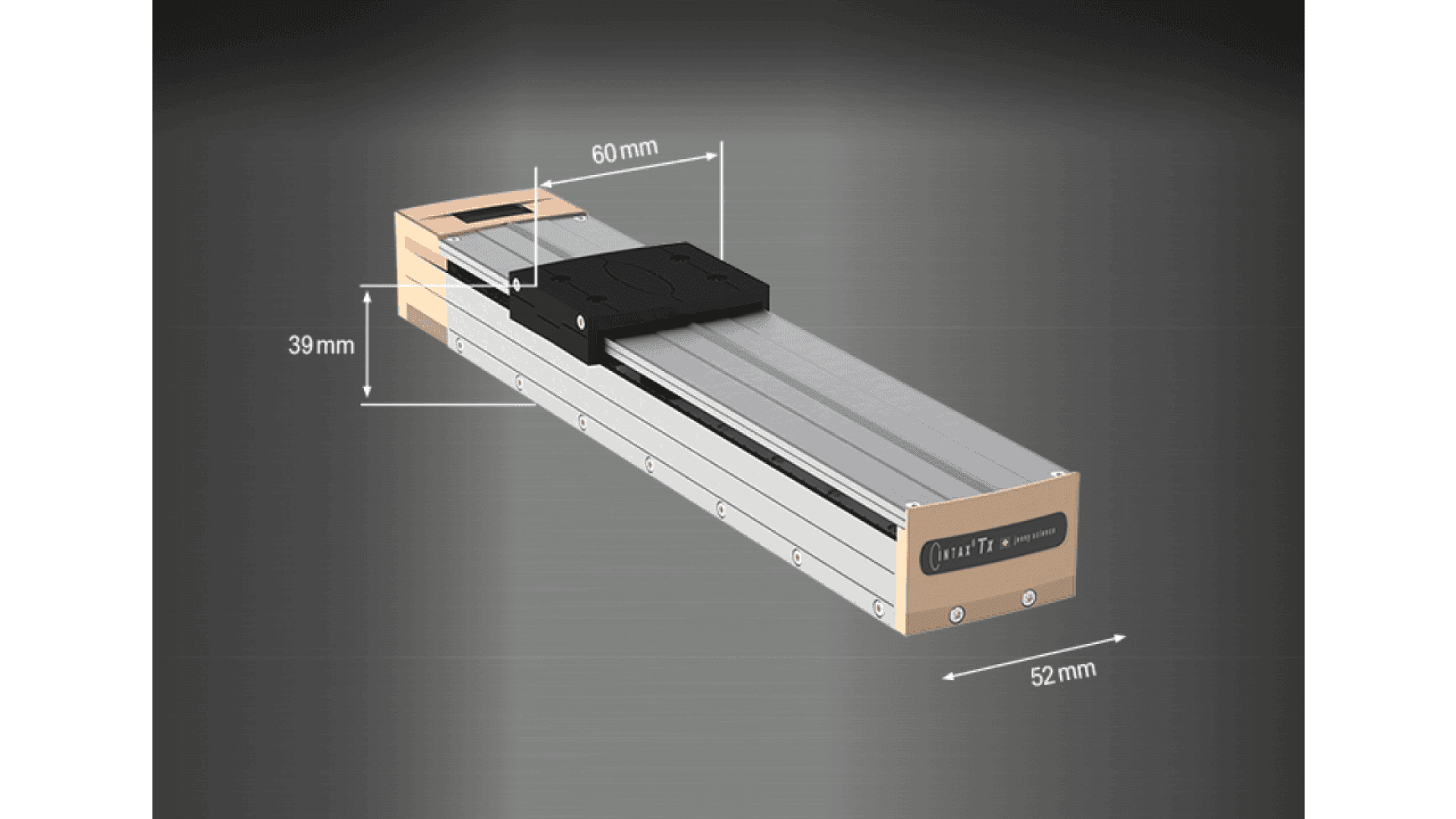

INTAX® TX servo controller integrated

Here it is: The world's first linear motor axis with an integrated servo controller that allows for a direct connection to the PLC (Programmable Logic Controller) - and all this easily through an Ethernet bus (EtherCAT, Ethernet/IP, Profinet, etc.).

New paths are created by walking them. The groundbreaking performance of this newly developed linear motor stage is characterized by its integrated compactness, achieved through the seamless incorporation of the servo controller, wiring, and cable management. This leap in design efficiency sets a new standard for miniaturization, enabling designers to construct machines and automated systems that are more compact and space-efficient. In contrast to traditional timing belts and spindle drives, this directly driven linear motor stage offers greater precision, speed, and quiet operation

The axis includes Ethernet bus coupling with various protocols and connects directly to the PLC. Together with the PLCopen libraries, the axis can now be easily moved in Cyclic synchronised mode or Profile position mode.

With the connection to the 12V DC supply, the axis is immediately ready for operation.

The absolute measuring system allows an immediate start without prior referencing.


Specific advantages, USP's:

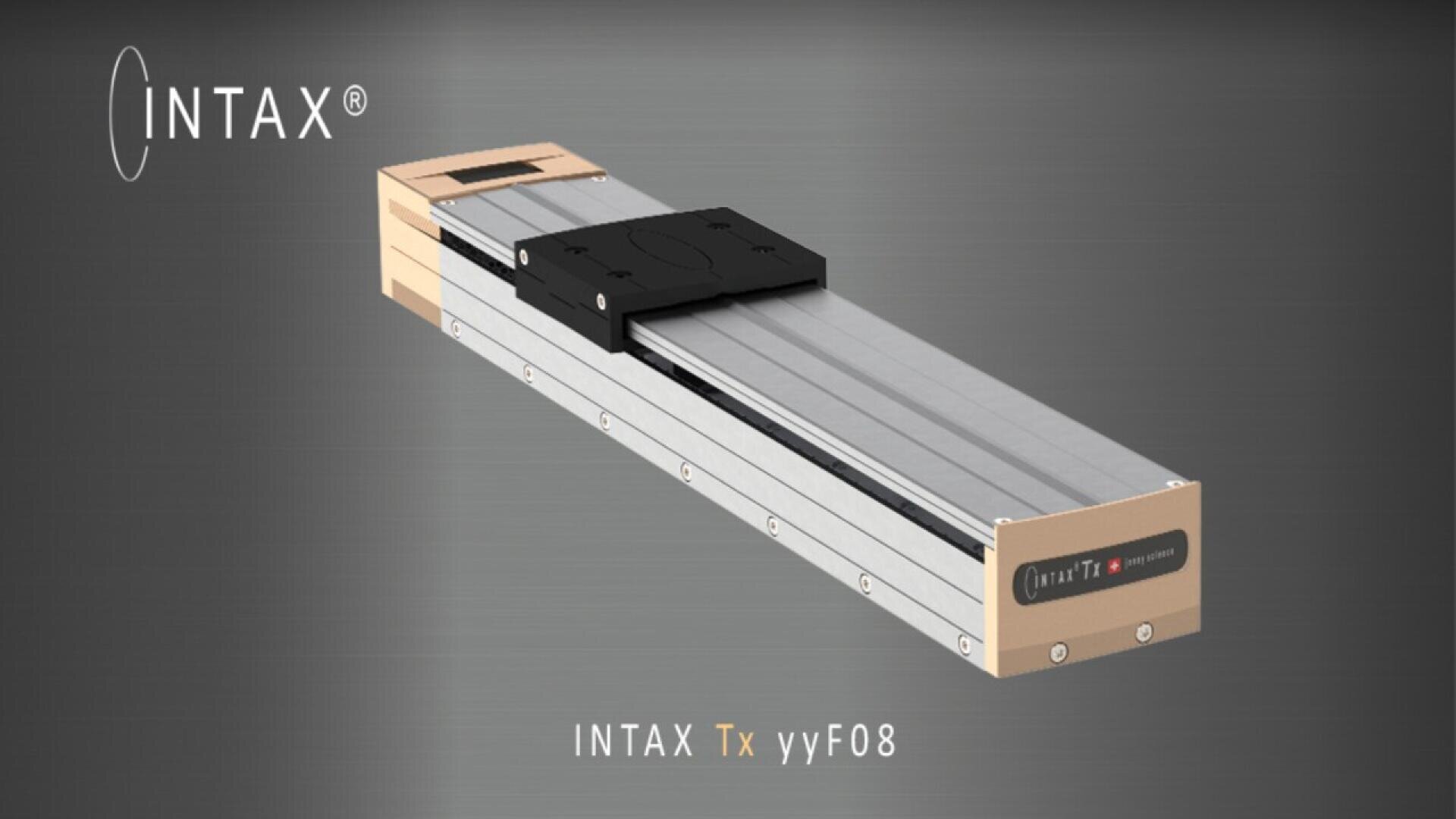

Completely integrated linear motor axis INTAX® Tx

  • Servo controller integrated
  • Linear Motor cabling integrated
  • Cable chain integrated

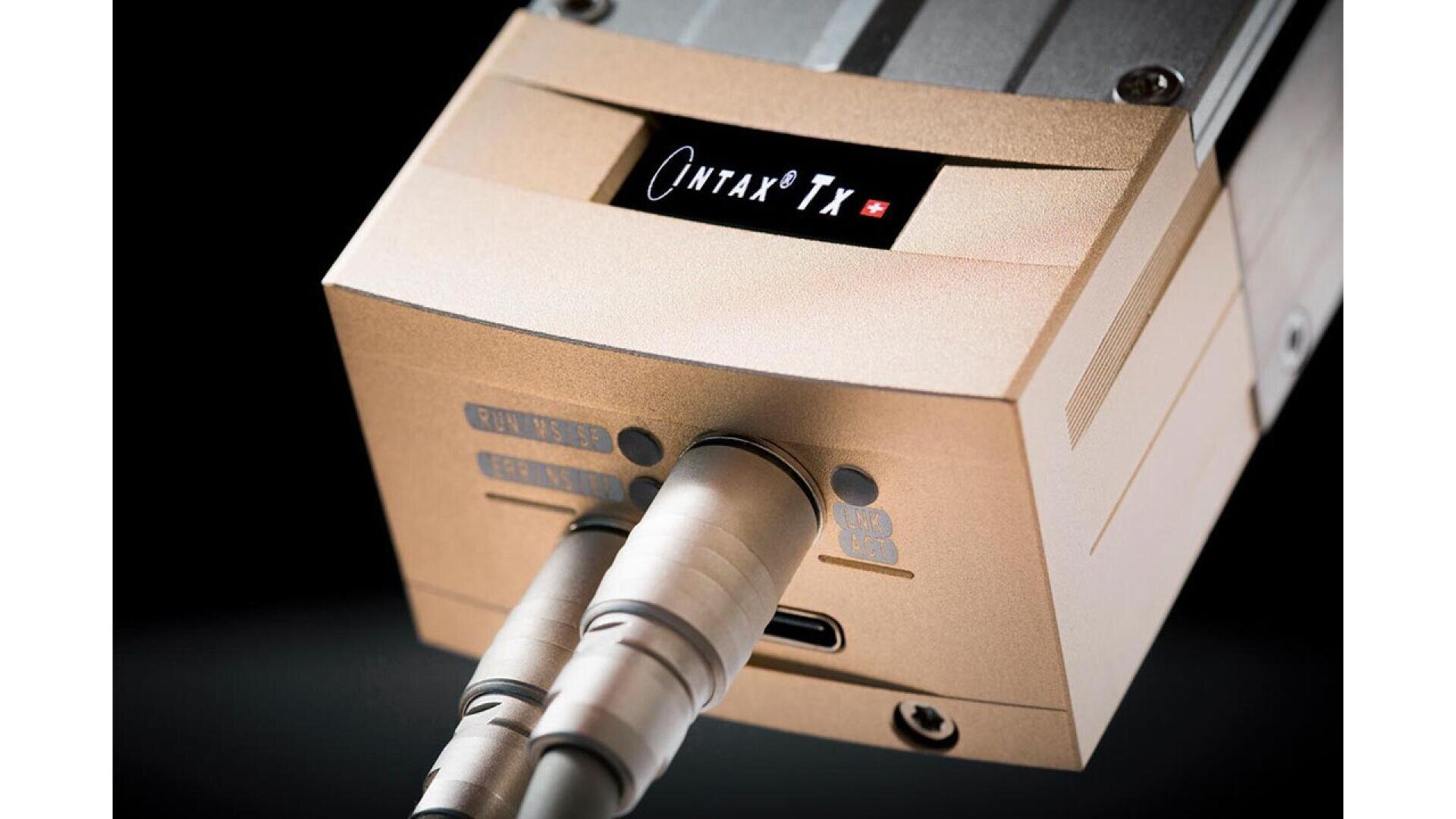

Only two connections

  • Ethernet Bus with various protocol stacks
  • 12 - 36V DC power supply

Would you like to find out more about our INTAX® - fully integrated linear axis? Visit us at our stand 1-104 and let our sales team take you into the world of Jenny Science AG.
